Procurement managers and plant engineers use McNichols services to convert span drawings into cut-to-size grating, mesh, and perforated panels with mill-certified paperwork. We document load bearing capacity, open-area percentages, and finish options before the purchase order releases—so field crews receive panels that fit the platform, not leftover mill lengths.

How We Support Your Hole-Product Package

Two service tracks keep industrial flooring and architectural mesh schedules moving from submittal to dock.

Specification & Load Guidance

Receive bearing-bar tables aligned to ANSI/NAAMM MBG 531 and IBC live-load cases, plus open-area and slip resistance notes for wet process areas. Submittals reference ASTM A1011 / A36 pathways and can include mill test report samples so structural reviewers approve without a second RFI cycle. We also flag when aluminum or FRP better matches corrosion exposure than carbon steel.

Cut-to-Size Fabrication

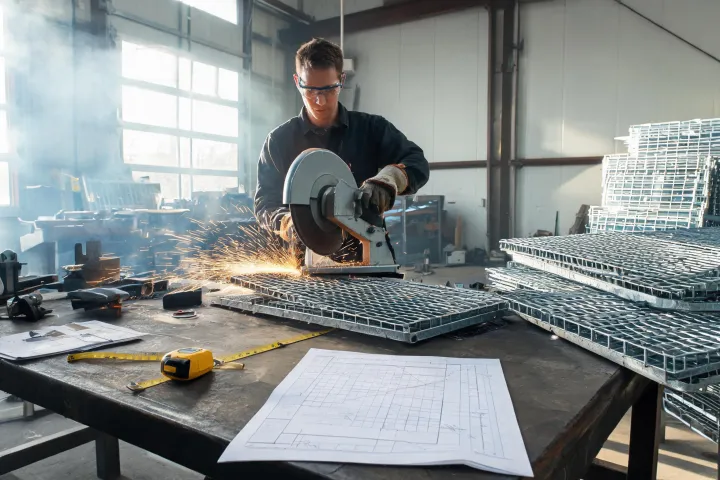

Local service centers notch panels, band stair treads, and punch mounting holes before shipment. Contractors get labeled bundles sequenced to mezzanine zones, reducing field torch work that can void galvanizing and dimensional stability. Same-day or next-day ship applies to most stocked SKUs when drawings arrive before the cut-off window.

Material Substitution Advisories

When carbon steel faces chlorides or splash, we compare aluminum grating and fiberglass plank on flexural strength, water absorption rate, and service life expectancy so value engineering does not become a warranty claim. Documentation lists recycled content percentage where mill data exists and notes embodied carbon trade-offs for LEED scorecards.

Jobsite Coordination Calls

Field consultants walk through banding details, clip types, and stair tread nosings before the critical path window. Prefabricated panel sets versus traditional stick-cut field fitting is framed honestly: shop cuts win on schedule when drawings are stable; field trim still makes sense when as-built steel drifts beyond tolerance.

Specification FAQs

Start with span, deflection limit, and whether wheel loads or pedestrian traffic dominate. We map the case to ANSI/NAAMM MBG 531 charts and confirm compressive strength of seating angles so the grating does not chatter under forklift approaches. Open-area targets for drainage can force a wider spacing that then needs a heavier bar to hold the same load bearing capacity.

Fiberglass grating earns the call in wastewater splash zones and chemical corridors where steel corrosion shortens service life expectancy below five to seven years. Trade-offs include lower fire resistance rating in some resin systems and different slip resistance coefficients when grit tops wear. We publish both so plant safety and structural reviewers can weigh the dispute without marketing spin.

Yes—within limits. Higher open-area percentages reduce wind pressure but also reduce flexural strength and visual privacy. We supply hole patterns with dimensional stability notes and recommend stiffening frames when panel spans approach architectural curtain-wall modules. Domestic mill inventory often shortens lead times versus specialty imports when Buy America clauses apply.

Before & After Working With McNichols Services

Before

Mill lengths arrive; crews torch-cut on site and void galvanizing edges
Load tables missing from submittals trigger RFI delays
Material swaps decided late after corrosion appears on plant decks
Stair treads mismatched to stringer spacing, forcing field welding

After

Cut-to-size panels labeled by zone with mill certs in the crate
Bearing-bar and IBC notes attached on first submittal cycle
FRP or aluminum recommended early where splash chemistry demands it
Banded stair treads matched to stringer drawings before ship
